Premium range of Booster Pumps, Circulatory Pumps, Regenerative Mini Booster Pumps & Sewage Pumps. 99.99% copper windings • Wide voltage operation • Silent & efficient performance.
.jpeg)

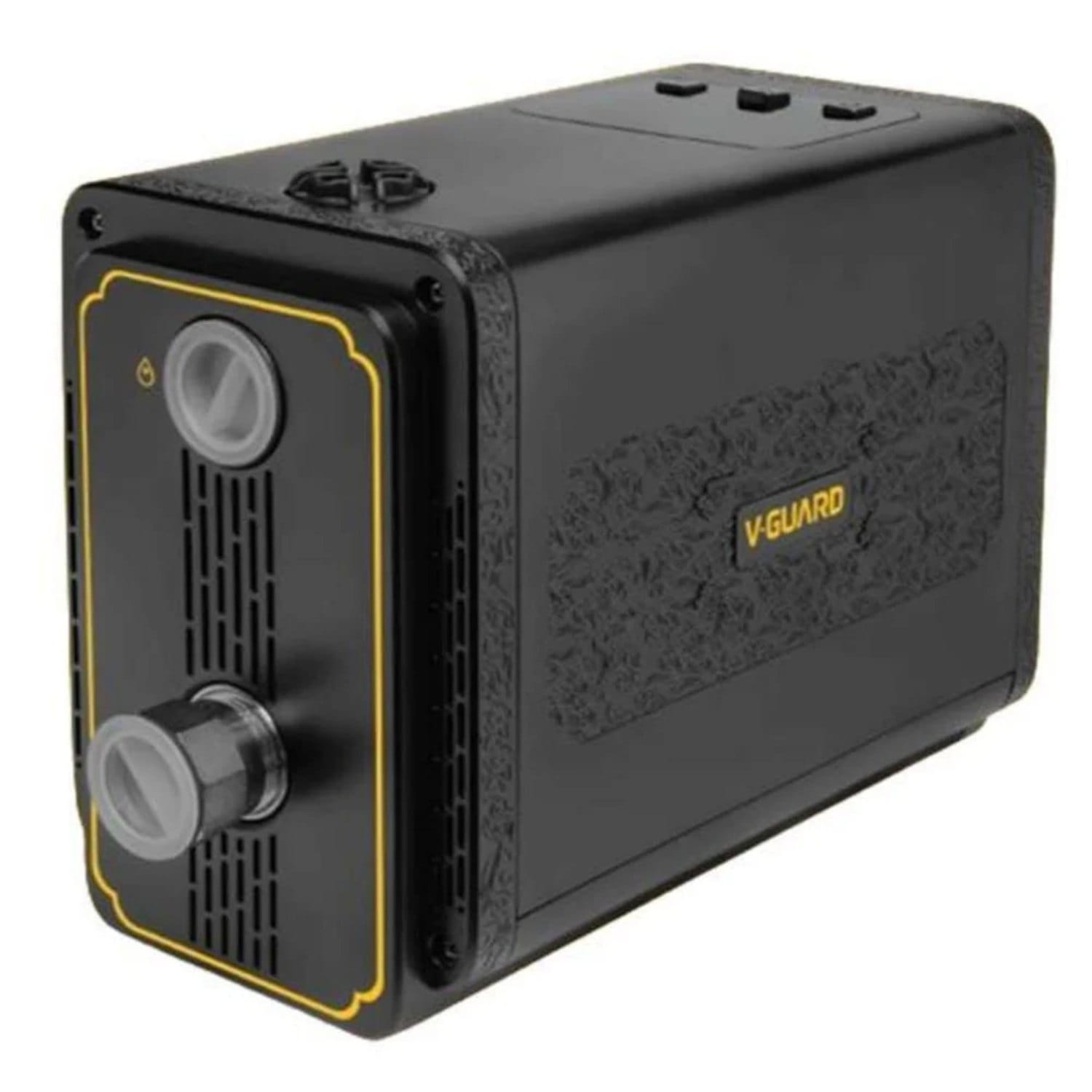

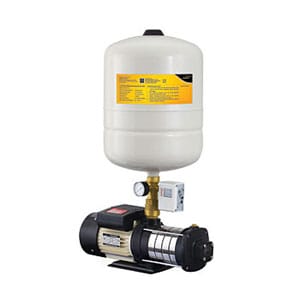

Single & Three Phase models for consistent pressure in residential & commercial buildings.
V-Guard Booster Pumps deliver assured quality with stringent QA process. 99.99% copper motor winding, wide voltage range operation and guaranteed performance. Ideal for hydro-pneumatic and intelligent pressure boosting applications.
| Parameter | Specification |
|---|---|
| Power Range | 0.5 – 2 HP (Single & 3 Phase) |
| Insulation Class | F / B |
| Max. Liquid Temp | 45°C |
| Features | 99.99% Copper • Wide Voltage • Silent |
Powerful, compact and energy-efficient booster solutions for domestic & commercial use.
State-of-the-art manufacturing with top-grade castings. 99.99% copper windings, wide voltage range and guaranteed performance. Perfect for consistent water pressure in homes and commercial buildings.
| Parameter | Specification |
|---|---|
| Power Range | 0.5 – 2 HP (Single & 3 Phase) |
| Insulation Class | F / B |
| Max. Liquid Temp | 45°C |
| Features | 99.99% Copper • Wide Voltage • Silent |

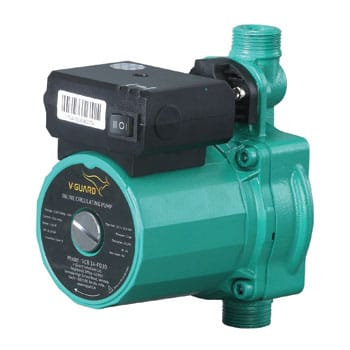

High efficiency inline circulating pump with vibration-less, noiseless operation.
Generates constant pressure • B-Class insulation • IP 44 protection • Automatic & Manual operation • Suitable for hot water applications up to 110°C.
| Model | Power | Discharge | Max Head |
|---|---|---|---|
| VCB10-F025 | 105W (0.14 HP) | 1680 LPH | 8 m |
| VCB14-F030 | 140W (0.18 HP) | 1800 LPH | 9 m |
| VCB25-F040 | 250W (0.33 HP) | 3000 LPH | 13 m |
.jpeg)

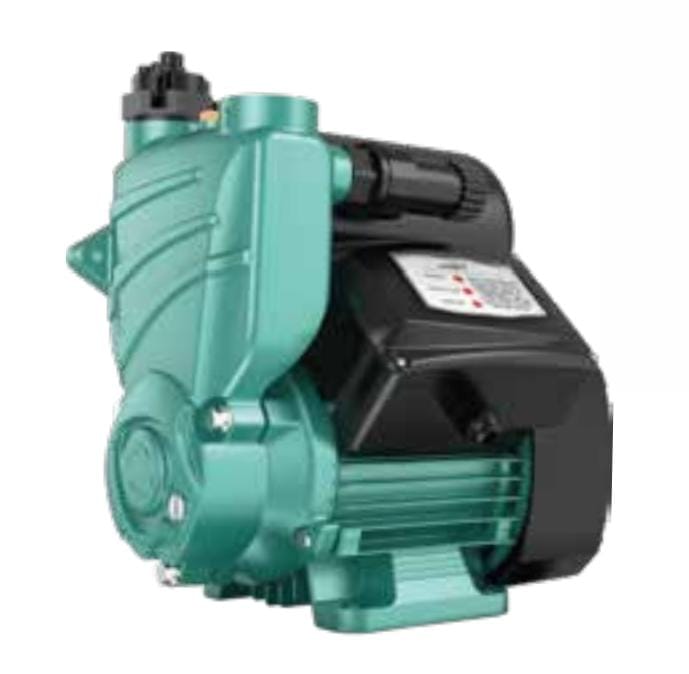

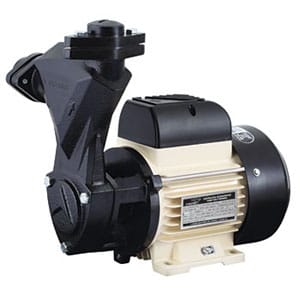

Rust preventive aluminium body • Brass impeller • Suitable for hot water.
Premium quality pump sets • Rigid cast iron casing • Stainless steel hardware • CED coated castings • Imported pressure tank • F/B-Class insulation.
| Model | Power | Discharge (LPH) | Max Head |
|---|---|---|---|
| VB1-H1S LITE | 0.5 HP | 2310 | — |
| VB1-H1S | 0.5 HP | 2460 | — |
| REGENPRO-B600 | 0.75 HP | 1855 | — |
Rust preventive aluminium body • Brass impeller • Suitable for hot water.
Premium quality pump sets • Rigid cast iron casing • Stainless steel hardware • CED coated castings • Imported pressure tank • F/B-Class insulation.
| Model | Power | Discharge (LPH) | Max Head |
|---|---|---|---|
| VB1-H1S LITE | 0.5 HP | 2310 | — |
| VB1-H1S | 0.5 HP | 2460 | — |
| REGENPRO-B600 | 0.75 HP | 1855 | — |

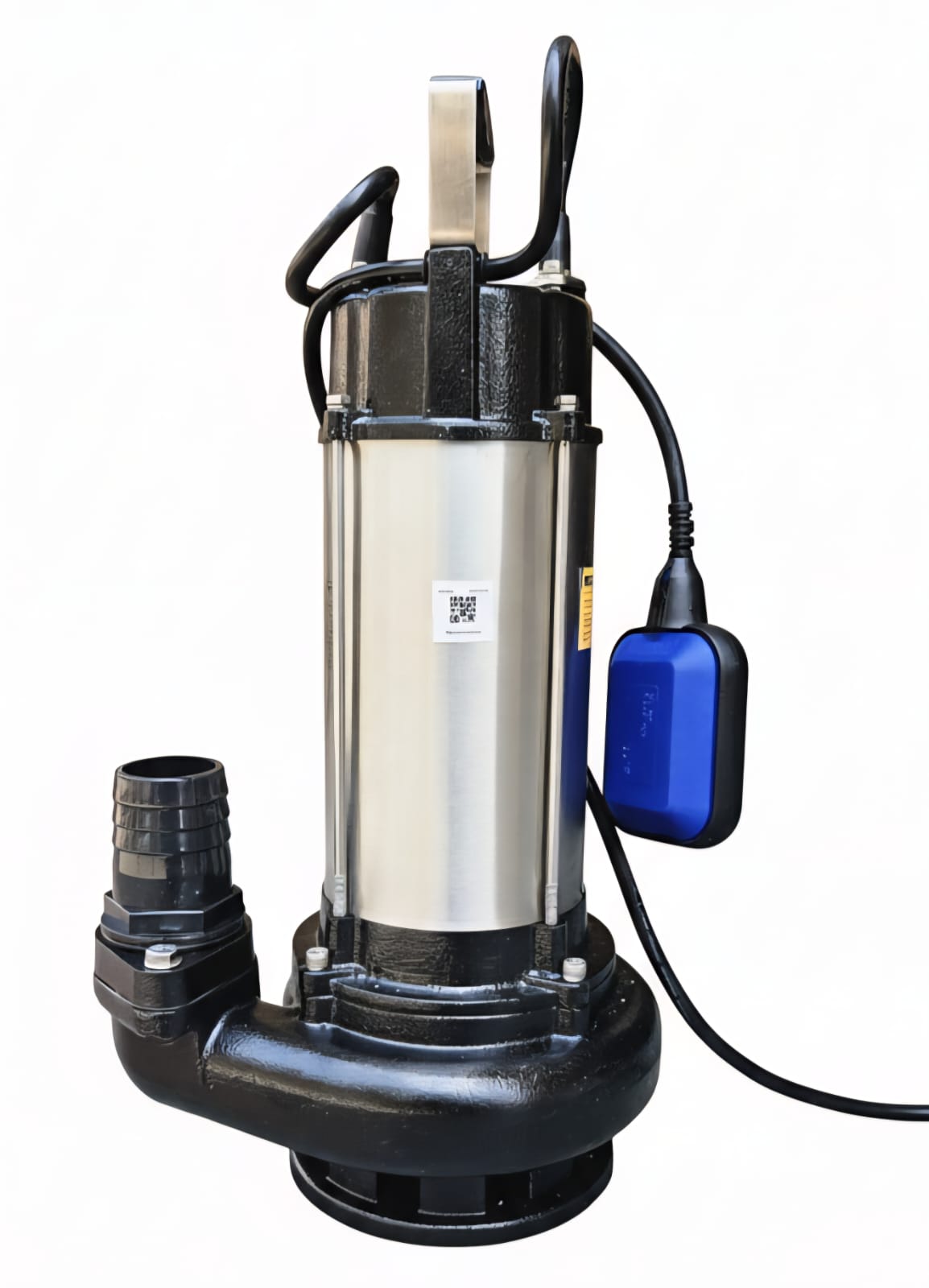

Robust, long lasting and efficient for domestic sewage and effluent.
Dry type submersible induction motor • Dual silicon carbide mechanical seal • Stainless shaft & fasteners • Rugged cast iron housing • Auto reset motor protector • 99.99% copper windings.
| Power | Discharge (LPH) | Max Head |
|---|---|---|
| 1.0 HP | Up to 24,800 | 15 m |
| 2.0 HP | Up to 30,000 | 15 m |
| 5.0 HP (3Ph) | Up to 58,000 | 18 m |
